안드로이드 // 간단한 이미지 뷰 액티비티 만들기

2020. 7. 28. 21:08

---------------

사진 저장 위치

----------------

가중치가 자동으로 잡힌다

width를 0으로 하고 height를 match_parent로 설정

---------------

<TextView
            android:id="@+id/textView"
            android:textSize="25sp"
            android:textStyle="bold"
            android:gravity="center"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:text="TimeLine" />

-------------------

이미지 구성

스케일 타입 centerCrop

------------------------------

클립아트 만들 때 하는 것

---------------------

---------------------

렐러티브

이미지뷰 텍스트뷰 이미지뷰

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="80dp"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/textView"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:text="TimeLine"
            android:textSize="25sp"
            android:textStyle="bold" />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:text="Untitled"
            android:textSize="25sp"
            android:textStyle="bold" />

    </LinearLayout>

    <LinearLayout
        android:orientation="vertical"
        android:layout_width="match_parent"
        android:layout_height="match_parent">

        <ImageView
            android:id="@+id/imageView2"
            android:layout_width="match_parent"
            android:layout_height="400dp"
            android:scaleType="centerCrop"
            app:srcCompat="@drawable/img1" />

        <RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="50dp">


            <ImageView
                android:id="@+id/imageView3"
                android:layout_marginLeft="10dp"
                android:layout_width="30dp"
                android:layout_height="match_parent"
                android:layout_alignParentLeft="true"
                app:srcCompat="@drawable/ic_favorite" />

            <TextView
                android:id="@+id/textView3"
                android:gravity="center"
                android:layout_marginLeft="10dp"
                android:layout_toRightOf="@id/imageView3"
                android:layout_width="wrap_content"
                android:layout_height="match_parent"
                android:text="TextView" />

            <ImageView
                android:id="@+id/imageView4"
                android:layout_width="35dp"
                android:layout_marginRight="10dp"
                android:layout_height="match_parent"
                android:layout_alignParentRight="true"
                app:srcCompat="@drawable/ic_more" />
        </RelativeLayout>

    </LinearLayout>

</LinearLayout>

-----------------------

-------------------

<RelativeLayout
            android:layout_width="match_parent"
            android:layout_height="60dp">

            <TextView
                android:id="@+id/tv_username"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="아이디"
                android:textStyle="bold"
                android:textSize="25sp">

            </TextView>

            <TextView
                android:id="@+id/tv_comment"
                android:layout_marginLeft="10dp"
                android:layout_toRightOf="@id/tv_username"
                android:layout_width="wrap_content"
                android:layout_height="wrap_content"
                android:text="내용"
                android:textSize="25sp">

            </TextView>

        </RelativeLayout>

---------------------

XML파일에서 컴포넌트들은 클래스이기 때문에 첫글자를 대문자로 해야한다

---------------------

--------------------

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="80dp"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/textView"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:text="TimeLine"
            android:textSize="25sp"
            android:textStyle="bold" />

        <TextView
            android:id="@+id/textView2"
            android:layout_width="0dp"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:gravity="center"
            android:text="Untitled"
            android:textSize="25sp"
            android:textStyle="bold" />

    </LinearLayout>

    <ScrollView
        android:layout_width="match_parent"
        android:layout_height="match_parent">

<!--        스크롤뷰는 레이아웃을 하나 밖에 못둔다 레이아웃으로 묶기-->

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:orientation="vertical">

            <include layout="@layout/layout_content" />
            <include layout="@layout/layout_content" />
            <include layout="@layout/layout_content" />

        </LinearLayout>


    </ScrollView>

</LinearLayout>

-------------------------

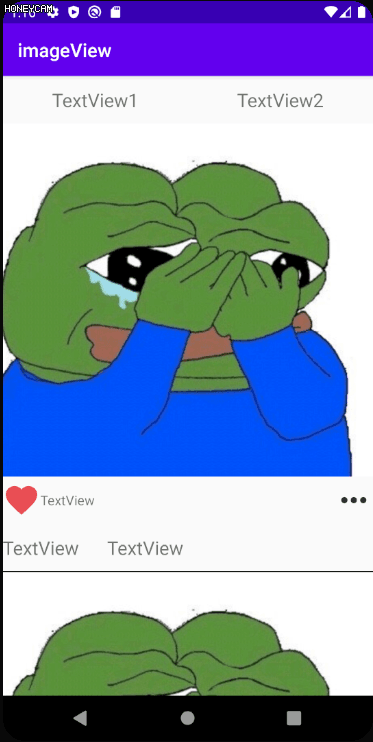

다시 만들어봄

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context=".MainActivity">


    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="50dp"

        android:orientation="horizontal">

        <TextView
            android:id="@+id/tv_1"
            android:gravity="center"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:textSize="20sp"
            android:text="TextView1" />

        <TextView
            android:id="@+id/tv_2"
            android:gravity="center"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:layout_weight="1"
            android:textSize="20sp"
            android:text="TextView2" />
    </LinearLayout>

    <ScrollView
        android:layout_width="match_parent"
        android:layout_height="wrap_content">

        <LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:orientation="vertical">

            <include layout="@layout/layout_content" />
            <include layout="@layout/layout_content" />
            <include layout="@layout/layout_content" />
            <include layout="@layout/layout_content" />

        </LinearLayout>

    </ScrollView>




</LinearLayout>

layout_content.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="match_parent"
        android:layout_height="375dp"
        android:scaleType="centerCrop"
        app:srcCompat="@drawable/tear" />

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="50dp">


        <ImageView
            android:id="@+id/imageView2"
            android:layout_alignParentLeft="true"
            android:layout_width="40dp"
            android:layout_height="match_parent"
            app:srcCompat="@drawable/ic_fav" />

        <TextView
            android:id="@+id/textView3"
            android:layout_toRightOf="@id/imageView2"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:gravity="center"
            android:text="TextView" />

        <ImageView
            android:id="@+id/imageView3"
            android:layout_alignParentRight="true"
            android:layout_width="40dp"
            android:layout_height="match_parent"
            app:srcCompat="@drawable/ic_more" />


    </RelativeLayout>

    <RelativeLayout
        android:layout_width="match_parent"
        android:layout_height="50dp">


        <TextView
            android:id="@+id/textView4"
            android:gravity="center"
            android:layout_alignParentLeft="true"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:textSize="20dp"
            android:text="TextView" />

        <TextView
            android:id="@+id/textView5"
            android:gravity="center"
            android:layout_marginLeft="30dp"
            android:layout_toRightOf="@id/textView4"
            android:layout_width="wrap_content"
            android:layout_height="match_parent"
            android:textSize="20dp"
            android:text="TextView" />
    </RelativeLayout>

    <View
        android:background="@android:color/background_dark"
        android:layout_width="match_parent"
        android:layout_height="1dp"/>

</LinearLayout>
